Raising the bar with our advanced solar manufacturing facility.
Modern, technology-driven production lines delivering A-grade PV modules engineered for durability, efficiency and lifecycle value.
Every module, engineered for the long run.
At Ganesh Green Bharat Limited, every solar project is treated as a long-term investment. Our modules are engineered for durability, efficiency and lifecycle value backed by strong product and performance warranty support across the operational life of every panel.

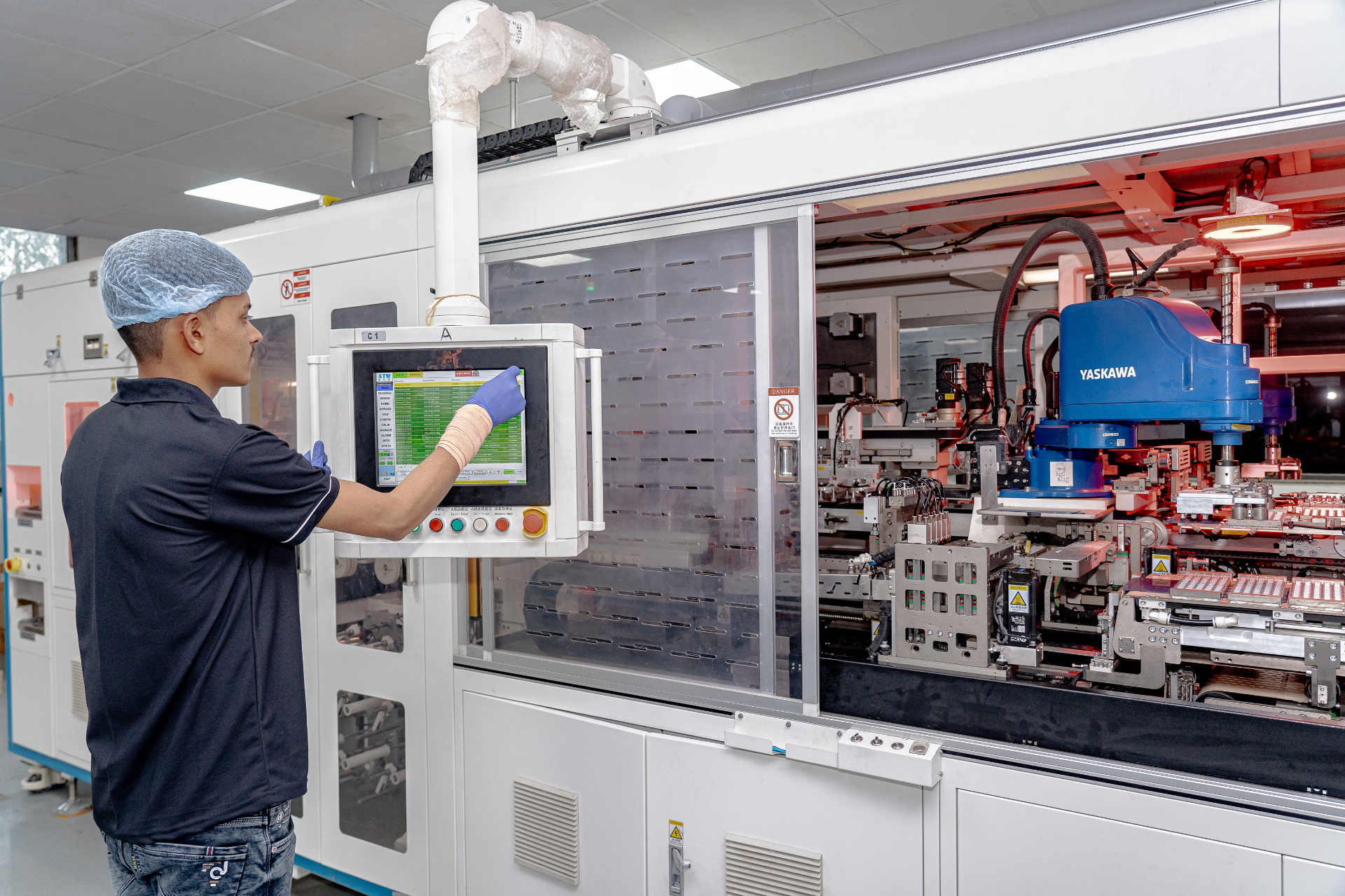

Our production lines integrate automated stringing, high-speed lamination, real-time EL testing and intelligent defect detection systems. This blend of advanced automation and quality control enhances throughput, ensures product reliability and delivers performance with minimal variation.
From wafer to module, every step is controlled.
A continuous, instrumented process — automation handles repetition, engineers handle judgement, sensors handle proof.

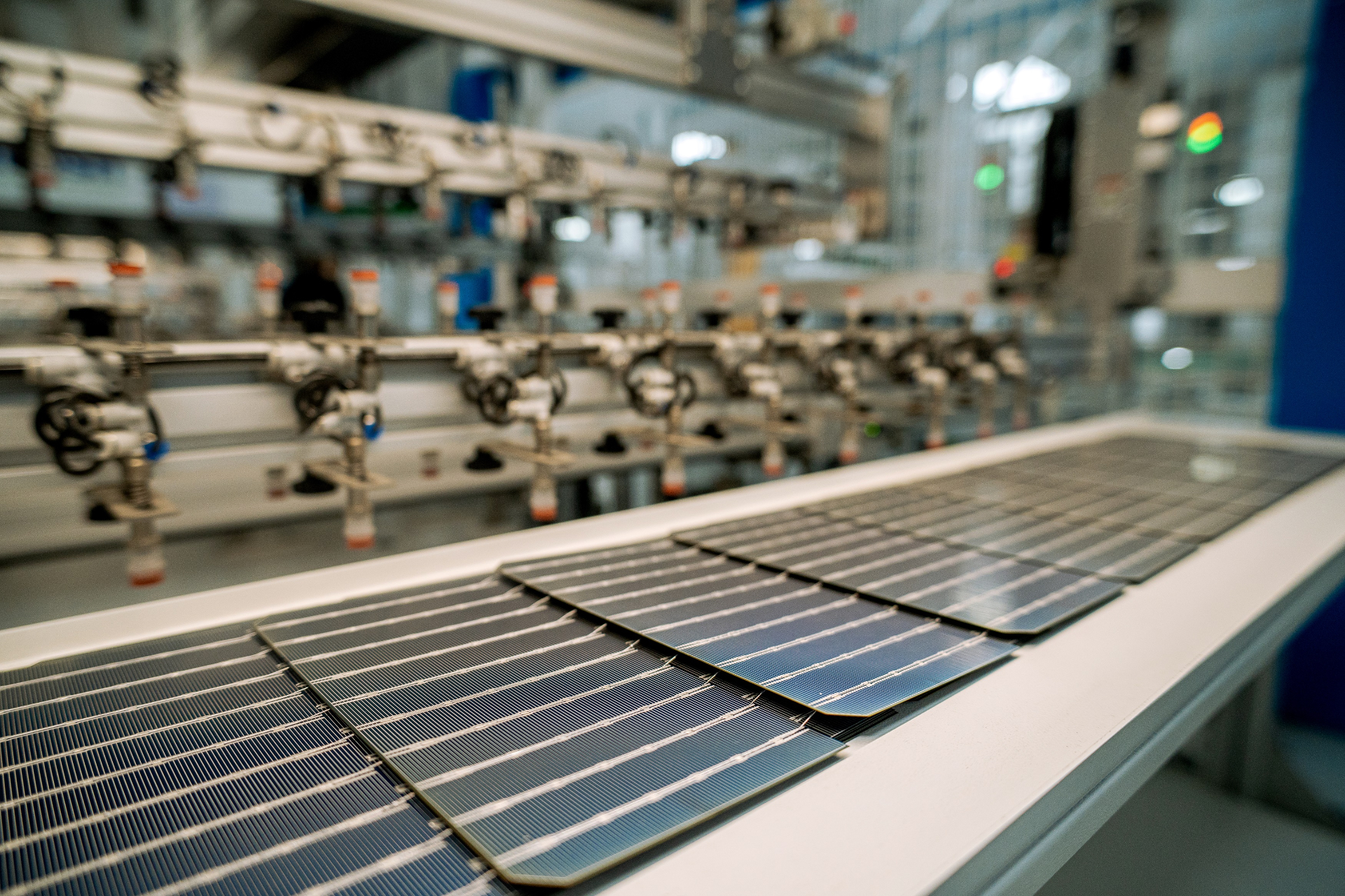

Wafer & Cell Inspection
Incoming N-type / P-type cells are inspected for colour, efficiency binning and micro-cracks before they enter the line.

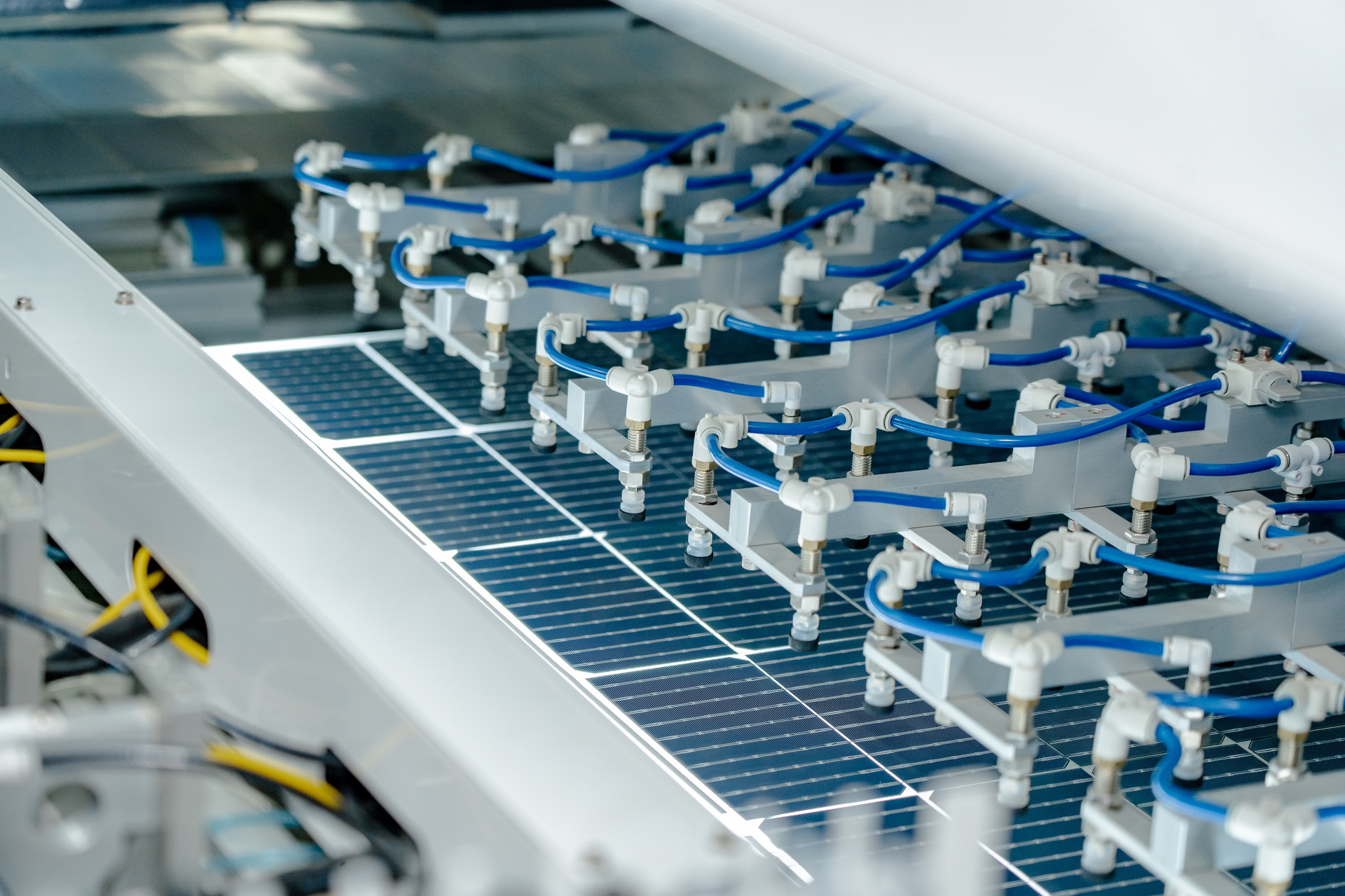

Cell Cutting & Stringing
Laser cell cutting produces half-cut cells; automated stringers interconnect them with low-stress precision soldering.

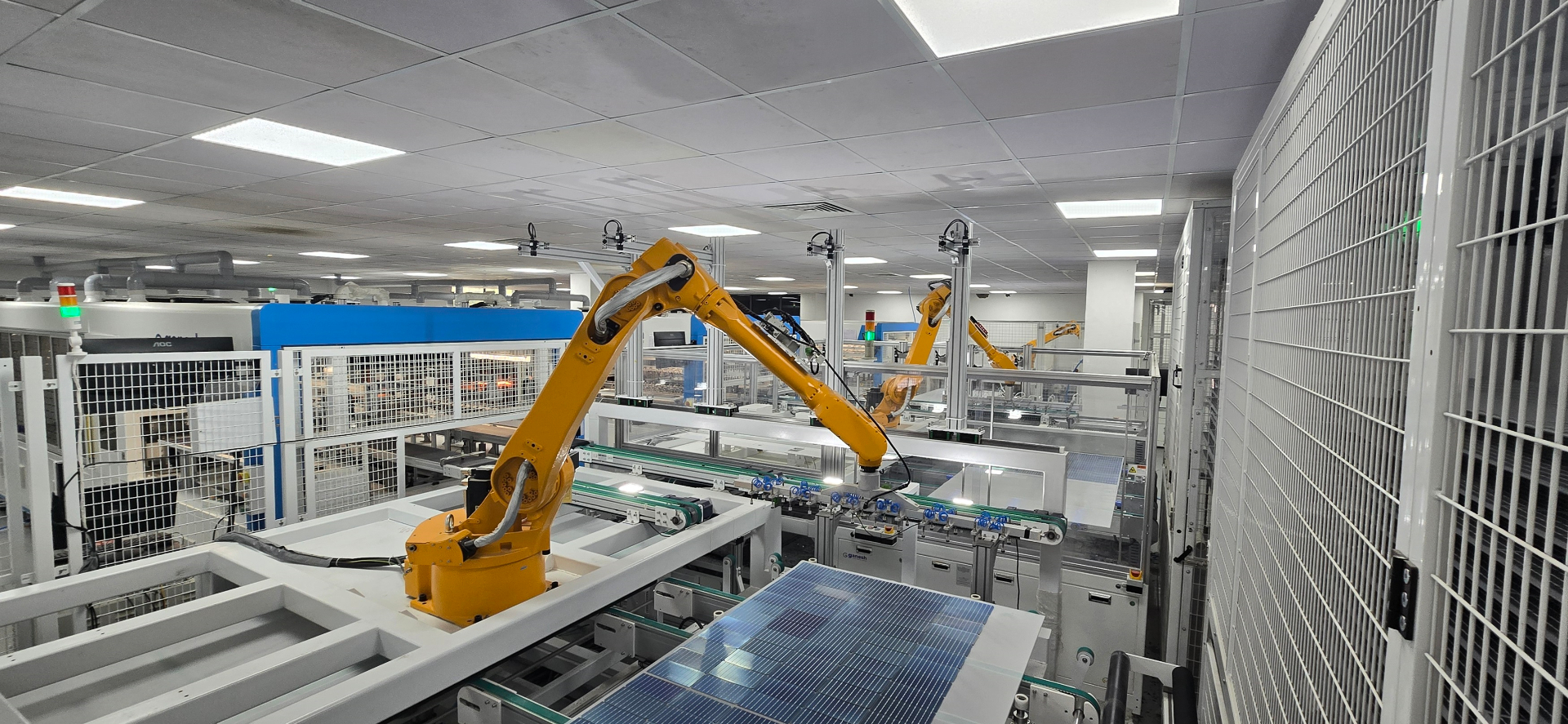

Layup & Bussing
Glass, EVA, strings, EVA and backsheet are stacked; robotic bussing solders interconnect ribbons with tight alignment.

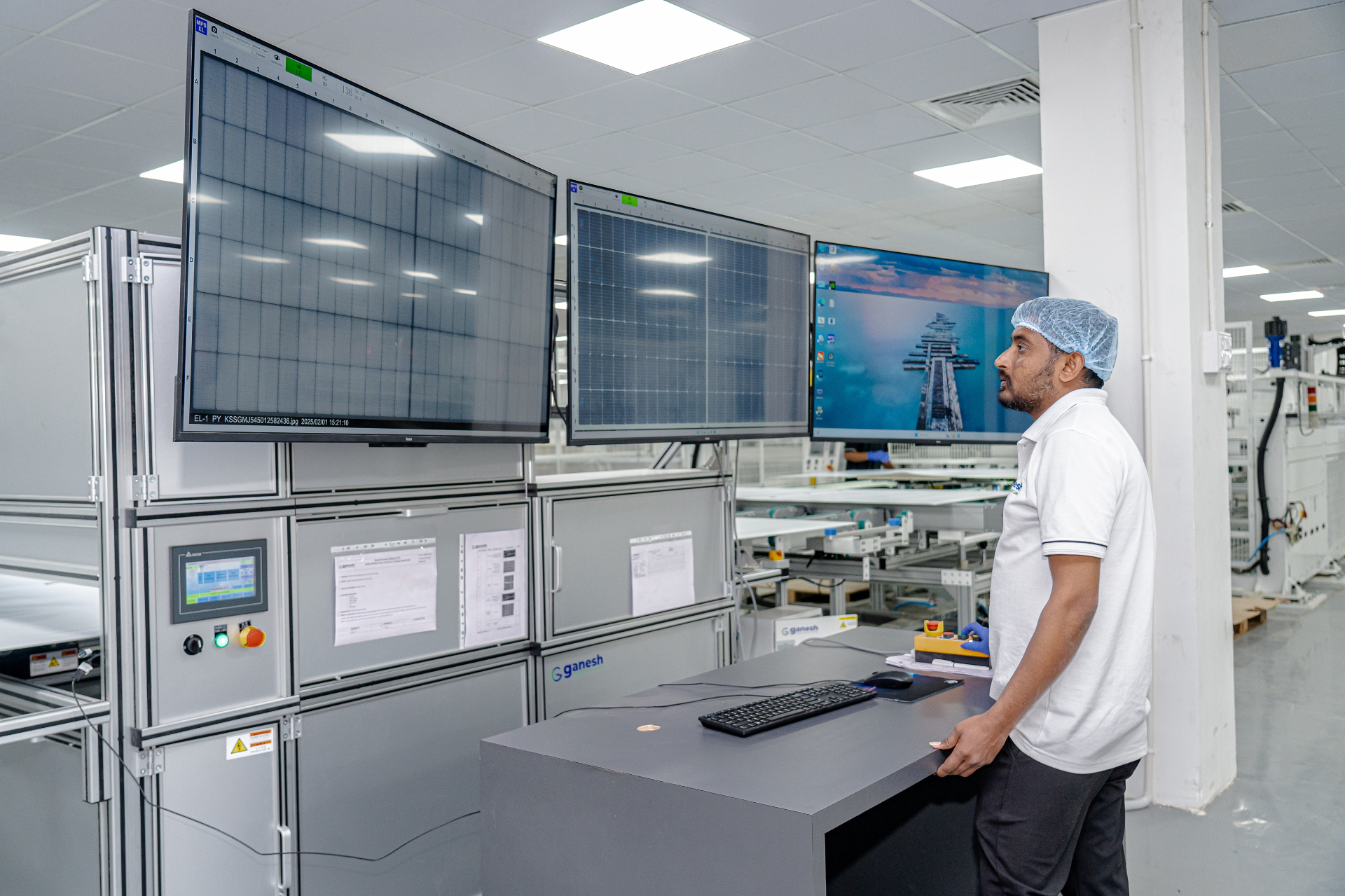

Pre-Lamination EL Test
Electroluminescence imaging catches micro-cracks and soldering defects before lamination locks them in.
Lamination
Vacuum lamination encapsulates the stack in EVA / POE for moisture, UV and thermal cycling resistance.
Framing & Junction Box
Aluminium frames are bonded with structural silicone and IP68 junction boxes are mounted and potted.
Flash & Hi-Pot Testing
Every module is flash-tested for IV curve and Wp class, then high-voltage and wet-leakage tested for safety.
Final EL, Sort & Pack
Final EL imaging, visual QC, Wp binning, labelling, palletisation and barcode traceability for every module shipped.
Advanced testing for superior solar standards.
Every product undergoes a multi-stage testing protocol designed to detect and eliminate defects at every stage of production — positioning GGBL as a trusted PV module manufacturer in India.
High-Voltage Test
Verifies dielectric strength and electrical insulation under extreme voltage.
EL Imaging Test
Detects micro-cracks, finger interruptions and cell defects with infrared cameras.
Wet Leakage Test
Ensures maximum water resistance and zero current leakage in wet conditions.
Mechanical Load
Simulates harsh wind and snow conditions up to 5400 Pa to verify structural integrity.
Inside our facility
See our modules in production.
Schedule a factory visit at our Mehsana facility or request technical datasheets for your project.
